I dropped my Droid

Hi everyone! I unfortunately dropped my Droid today, and since then it’s been fluctuating the resistance erratically (instead of 0.5ohm, it’s showing 0.77ohm, 0.71ohm, 0.47ohm, 0.57ohm, 0.63ohm etc.), and it frequently gives the “Batt” or “Temp” error message. I need to look inside! I also tried it with another battery, in case the battery got damaged too, but it’s the same. :sad_but_relieved_face:

![20260114_185630|666x50

11 Likes

You never rest until you’ve taken something apart :joy:

He must have been an excellent

10 Likes

Petike wanted to be a complete package, but he’s not! :grin:
Any ideas what’s causing the error? “Temp” “Batt” What could have gone wrong besides the Droid?
Still, I’m not feeling very cheerful! :sad_but_relieved_face:

8 Likes

The PCB needs to be checked with a good, strong magnifying glass; probably one of the solder joints has loosened.

animation film GIF by Eva Garner The Secret of Eden

8 Likes

I think so too…

8 Likes

It looks like the error has been found. The screw of the test wire has loosened. But the screw wasn’t sitting well either. It was re-soldered, and the solder was removed from under the screw head so it sits properly on the surface and has contact over as large an area as possible, thus reducing the resistance. I am currently testing it, so far everything is okay with it, but I’ll give it a few more days to be sure

15 Likes

Well, these points are definitely not assembled by instrument makers in cheap manufacturing locations, they ruin most of the cheap options with exactly these kinds of difficult, shoddy things. (Actually, this spreads an even worse reputation for something that’s already shoddy anyway… but if assembled professionally, it would operate well and more reliably):roll_eyes:

12 Likes

Canadian company Mission XV. Or it’s just registered there. But maybe it’s also made in China? :wink:

3 Likes

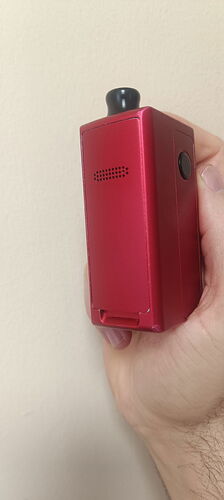

I’m reporting, everything is fine with the Droid during 4 days of continuous use! The contact is good between the board - test thread and the C frame. :wink:
